Neodymium Magnet Double side Strong Salvage Fishing magnet 150KGx2 face search magnet holder magnetic stell cup holder


Price: [price_with_discount]

MAX Vertical Pull-force:t is whole product size,Double holes

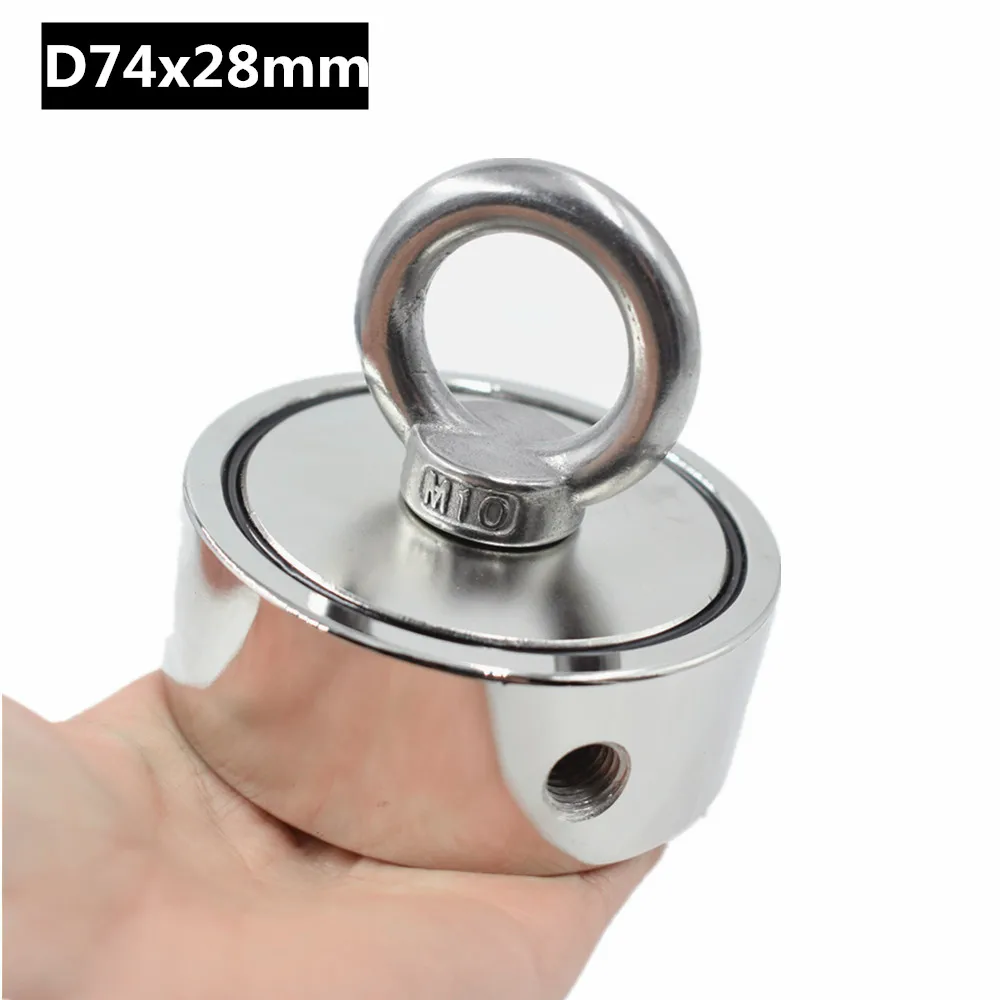

D74x28mm:160KG*2(It is whole product size,Double holes)+1pc M10Eye Bolt 304 Stainless Steel

D67x28mm:110KG*2(It is whole product size,Double holes)+1pc M10Eye Bolt 304 Stainless Steel

D58x28mm:60KG*2

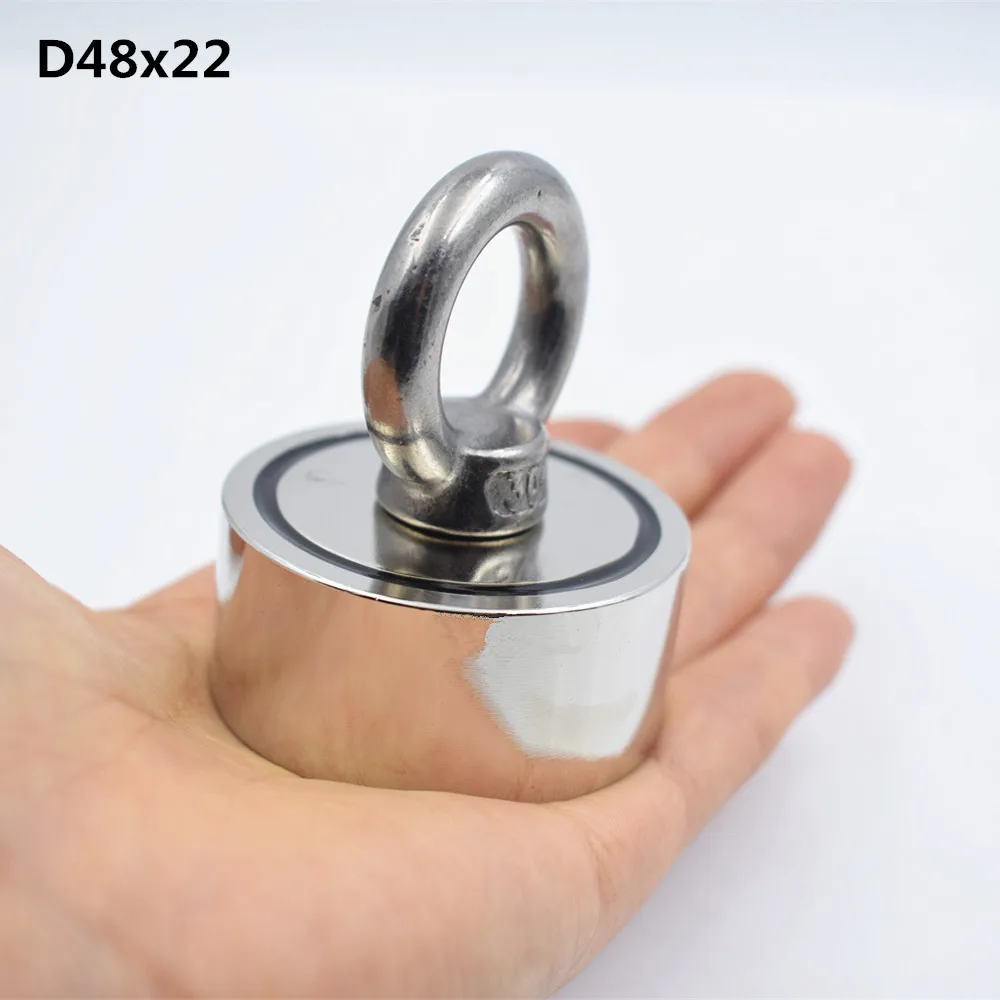

D48x28mm:35kg*2

Double-sided suction salvage magnet

Add a steel cupbetweenthe two magnets ,the two sides of product to be used which increases the strength of the magnet to more higher than that of a normal neodymium magnet.At the same time,it can protect magnet not to break easily.

This is a very good magnet it is double-sided but it comes with two eyebolt holes and you can use it vertically or horizontally.

The majority of Fishing Magnets are designed to be dropped straight-down (or “dipped”) to put the flat underside of the magnet to the top of any ferrous metal object. This limits the effectiveness of the magnet when dragging the magnet along the bottom of the body of water by throwing it out and retrieving it, or walking alongside a dock, pier, or bridge and dragging it along.

That is not the case with this Xhigh Double-sided magnet. When using the side eye-bolt mounting hole, the magnet now has TWO surfaces available – the flat side on bottom that retrieves objects by going over them, and the flat top that can grab an object when the magnet is pulled along an uneven bottom surface, such as gravel, rocks, etc. Where one side may miss the object, the magnet on the other side can “catch” it.

Another great use for this magnet (where the double-side REALLY helps) is for people like me who work on trucks and motorcycles in my driveway and I am always losing a screw, washer, or nut in the grass next to the driveway or sidewalk. This Xhigh Double-sided Fishing Magnet has not failed to find a needed part I dropped by dragging this double-sided magnet through the grass. This method will also work when needing to find metal objects lost or suspected to be in high grass or light brush such as lost items, thrown items, etc.

Useful manual

The hold weight is according to the touch face and iron product thickness

Product Specification

1. Part Model : TWO SIDE Neodymium Fishing /Salvage Magnet

2. Material: Neodymium Magnet +Steel+Black Resin

3. Size:D74x28mm/D67x28mm

4. Coating: Both Magnet & Steel Covering are Ni+Cu+Ni  Triple Layer

5.Max Working Tempearture: 80 degree centigrade

Product Description

Neodymium Fishing Magnet /Salvage Magnet

It is mainly made up of a high grade neodymium magnet and a steel shell, the steel shell is crucial to amplification of magnetic force, it can concentrate the powerful magnetic field on the bottom of magnet which increase the magnetic force by 2.5-4 times compared to the naked magnet. At the same time, the steel cup can prevent the naked magnet from scratch and chipping during grabbing and clamping.

Xhigh retrieving magnets are designed for heavy duty and underwater use. It can help to recover lost equipments, tools, fishing tackles and other ferrous objects in deep water, wells, holes. It is also great for magnet fishing, lifting, hanging and retrieving applications.

Note:

1.The magnetic pull force was tested using a computer-controlled tensile tester.The actual pull force will vary mainly depending on the following variables:
a: Steel thickness :The thinner the steel, the lower the pull force, 200KG vertical magnetic pull force was got on base of 30mm thickness steel Plate
b: Pulling direction :The bigger of the pulling direction beyond 90°, the lower the pull force, normally the Pull force in horizontal direction is only about one third of that in vertical direction.
c: Attracting position :The farther beyond the center of gravity, the lower the pull force.
In addition, iron chips of magnetic surface also reduce the pull-force of magnet at some extent.
2.Magnet just only attract iron , ferrous metal and nickel, do not attract gold, silver, copper, aluminums and their alloy and stainless Steel
3. Magnetic force concentrates on the bottom of the fishing magnet, there is hardly any magnetic force of other surfaces .
Warnings:

1. This magnet is very powerful for their sizes and may pinch your fingers badly;

2. Keep away from Children of all ages.

3. Do not allow magnets to jump together or onto a metal surface, Special care always needs to be taken when handling.

About us:

We areMainly produce the manufacturing of the mid and high-end NdFeB permanent magnets and the Research&Development of the NdFeB magnetic matrial.
We have been working on magnetic materials for more than 10 years,we are professional online retailer in china too.
We keep more than one million pieces magnets in different sizes in stock. Most orders could be arranged in 24-48 hours.
Customization is accepted,but it will cost more for less quantity.

For any information please contact us any time.We will reply ASAP.

Thank you!
