LED Flashlight

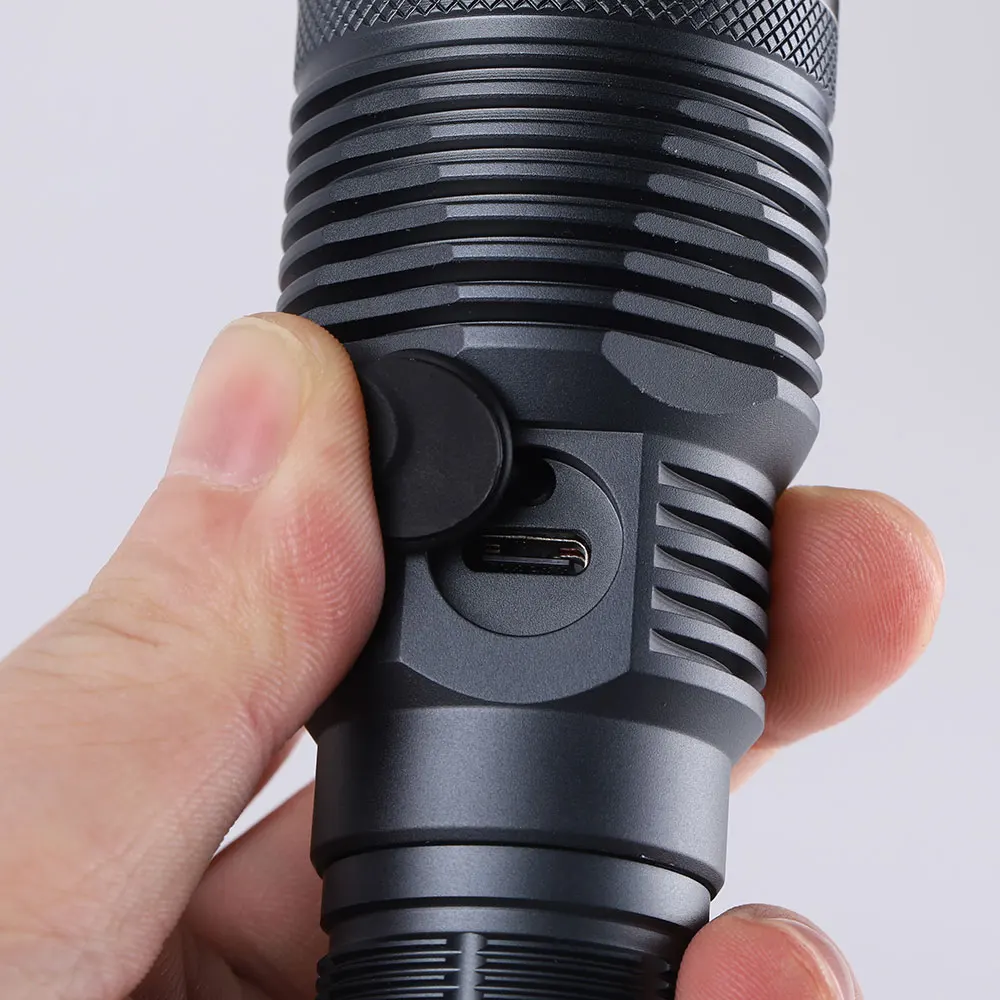

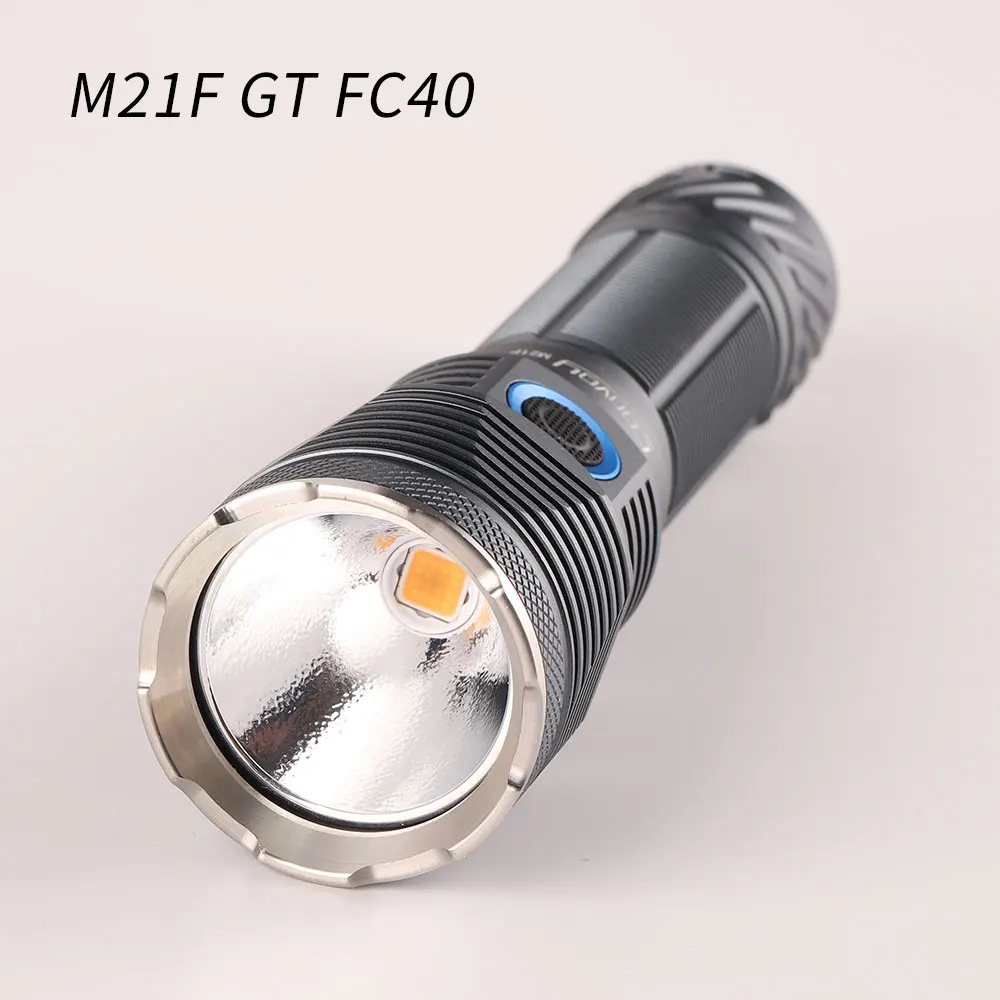

Convoy M21F 21700 flashlight ,type-c charging port,GT FC40,XHP70.3 HI high CRI

By


Price: [price_with_discount]

parameters:

  • Material: aluminum alloy
  • Low voltage warning: yes
  • Reverse polarity protection: yes
  • Lens Type: ar-coated lens
  • Reflector: Orange peel
  • Switch position: side
  • Mode memory: yes
  • Tail stand: yes
  • Driver output : 12V 2.5A GT FC40,  6V 5A XHP70.3 HI
  • Maximum charging current: 2A
  • CRI: R9050
  • Flux: 2500LM
  • Battery charger includes: not included
  • Battery type required: 1*21700 battery
  • Number of batteries required: 1

  • Size: Head/body/tail diameter: 40mm/27.5mm/29.5mm
  • length: 143.8mm
  • Product weight: 145g

Mode operation instructions:

1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]

3.flashlight on or off, 2-click the button  ——>  turbo 100%

4.flashlight off,3-click the button   ——>  strobe

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

6.flashlight off,5-click the button   ——>  voltage detection  (* means “flash” ,  *** pause ******* means 3.7V, )

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.



The flashlight has low voltage protection and temperature control protection.
